705-12-36011
- Specification
- Product Description
- Product Scenario
- Product Advantage
| Model | Displacement (cm3/rev.) |
Max. Pressure (kg/cm2) |
Rated Pressure (kg/cm2) |
Speed (r.p.m.) |
|
|---|---|---|---|---|---|
| Max. | Min. | ||||
| SAR3-63 | 63.1 | 250 | 210 | 2500 | 600 |
Applicable to :
GD85A-2, GD805A-1, HD325-5

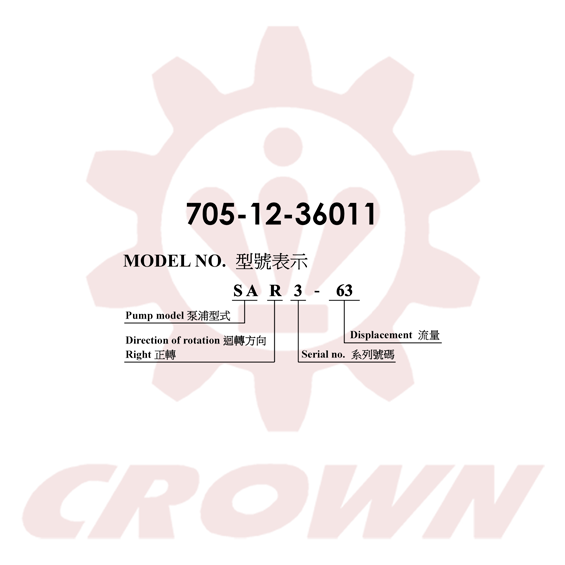

- Part Number: 705-12-36011
- Model: SAR3-63
- Displacement: 63.1 cm³/rev
- Rated Pressure: 210 kg/cm² (approx. 21 MPa / 3000 psi)
- Maximum Operating Pressure: 250 kg/cm² (approx. 25 MPa / 3550 psi)
- Speed Range: 600–2500 r.p.m
- Manufacturer: Hung Rong Hydraulic Tech. Co., Ltd. (Taiwan)
This pump is engineered for heavy-duty grading and hauling environments where consistent hydraulic performance under variable load conditions is critical for maintaining operational uptime on job sites:
- Motor Graders: Direct fit for Komatsu GD85A-2 and GD805A-1 models.
- Dump Trucks: Compatible with the Komatsu HD325-5 model.
- Industrial Fleets: Ideal for mining, quarrying, and heavy earthmoving applications requiring durable fluid delivery under high-pressure duty cycles.
- Taiwanese Manufacturing Excellence: Sourced from Hung Rong Hydraulic Tech., ensuring world-class engineering and stringent OEM-equivalent standards.
- High-Volume Delivery: Features a large 63.1 cm³/rev displacement to provide reliable fluid delivery under extreme variable loads.
- Outstanding Pressure Tolerance: Comfortably handles a continuous 210 kg/cm² workload and resists peak pressures up to 250 kg/cm² to prevent system power loss.
- Uptime Assurance: Acts as a dependable replacement part that extends fleet service life and minimizes costly unscheduled downtime in the field.
