705-21-34010 (3EC6015310)
- Specification
- Product Description
- Product Scenario
- Product Advantage
| Model | Displacement (cm3/rev.) |
Max. Pressure (kg/cm2) |
Rated Pressure (kg/cm2) |
Speed (r.p.m.) |
|
|---|---|---|---|---|---|
| Max. | Min. | ||||
| SAL2-50-RF (Rear Port Type) | 50.1 | 250 | 210 | 3000 | 800 |
| Port Type | Inlet | Outlet |
|---|---|---|
| Flange Port | Ø32 | Ø19 |
Applicable to :
W60, FD50, FD3T, FD40
- Part Number: 705-21-34010 (Cross Reference: 3EC6015310)

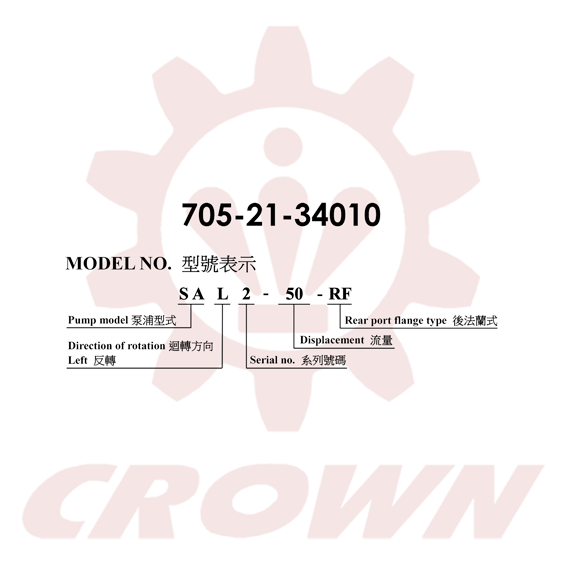

- Model: SAL2-50-RF (Rear Port Type)
- Displacement: 50.1 cm³/rev
- Rated Pressure: 210 kg/cm²
- Maximum Operating Pressure: 250 kg/cm²
- Speed Range: 800–3000 r.p.m.
- Port Specifications: Flange port connection (Ø32 Inlet / Ø19 Outlet)
- Manufacturer: Hung Rong Hydraulic Tech. Co., Ltd.
- Komatsu Equipment: Tailored specifically for Komatsu W60 wheel loaders, FD series forklifts, and compact construction machinery.
- System Functions: Operates as a robust rear port gear pump, providing 50.1 cm³/rev displacement for precise hydraulic power transmission and control.
- Work Environments: Built for demanding logistics and light construction environments, including high-frequency warehousing and heavy material handling sites.
- Applications: Ideal for professional operators requiring seamless equipment integration with straightforward flange port installation to maximize fleet uptime.
- Replacement: Built to stringent OEM specifications, offering 100% direct compatibility and a seamless fit to replace part number 705-21-34010.
- Taiwan-Made Quality: Manufactured by Hung Rong Hydraulic Tech. Co., Ltd. in Taiwan, backed by rigorous quality control and advanced hydraulic engineering.
- Heavy-Duty Reliability: Delivers consistent pressure up to 250 kg/cm² across a wide speed range (800-3000 RPM), ensuring OEM-level durability under constant duty cycles.
- Global Support & Value: Provides industrial fleet operators with a cost-effective maintenance solution that guarantees absolute operational efficiency without compromise.
