705-11-33100
- Specification
- Product Description
- Product Scenario
- Product Advantage
| Model | Displacement (cm3/rev.) |
Max. Pressure (kg/cm2) |
Rated Pressure (kg/cm2) |
Speed (r.p.m.) |
|
|---|---|---|---|---|---|
| Max. | Min. | ||||
| SA2-45-RF (Rear Port Type) | 43.7 | 250 | 210 | 3000 | 800 |
| Port Type | Inter | Outlet |
|---|---|---|
| Flange Port | Ø32 | Ø19 |
Applicable To :
510-1
| Part No. | 705-11-33100 |

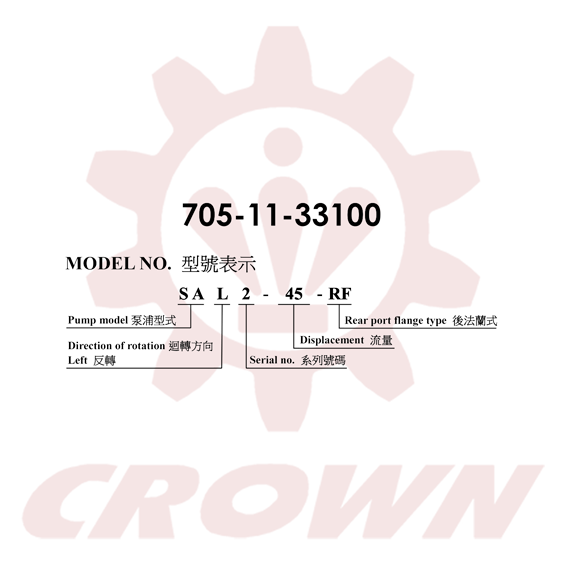

| Model No. | SAL2-45-RF |
| Brand | KOMATSU Series |
| Type | Rear Port Type |
| Displacement | 43.7 cm³/rev |
| Rated Pressure | 210 kg/cm² |
| Max. Pressure | 250 kg/cm² |
| Speed Range | 800 – 3000 r.p.m. |
| Inlet Port | Ø32 Flange |
| Outlet Port | Ø19 Flange |
| Applicable Equipment | Komatsu 510-1 |
| Manufacturer | HUNG RONG HYDRAULIC TECH. CO., LTD |
The SAL2-45-RF hydraulic gear pump is purpose-built for Komatsu 510-1 equipment, delivering reliable hydraulic power in construction, material handling, and heavy-duty mobile machinery applications.
Its rear port flange configuration allows secure and seamless integration into existing hydraulic systems.
With a displacement of 43.7 cm³/rev and an operating speed range of 800 to 3000 r.p.m., the pump provides precise and consistent flow control for hydraulic circuits.
Capable of withstanding pressures up to 250 kg/cm², it is well-suited for excavators, loaders, and other earth-moving machinery where dependable hydraulic performance is essential.
- OEM-Grade Compatibility — Manufactured to Komatsu OEM specifications for direct fit installation, eliminating the need for modifications
- ISO-Certified Quality — Produced under ISO-certified manufacturing processes with rigorous quality control, meeting or exceeding original equipment standards
- High Pressure Performance — Rated at 210 kg/cm² with a maximum of 250 kg/cm², ensuring powerful and stable output for the most demanding applications
- Rear Port Flange Design — Ø32 inlet and Ø19 outlet flange configuration enables seamless integration with existing hydraulic systems
- Wide Speed Compatibility — Operates efficiently from 800 to 3000 r.p.m., adapting to varying engine loads and work conditions
- Taiwan Precision Manufacturing — Backed by decades of hydraulic engineering expertise from HUNG RONG HYDRAULIC TECH. CO., LTD, ensuring long-term durability and consistent performance
